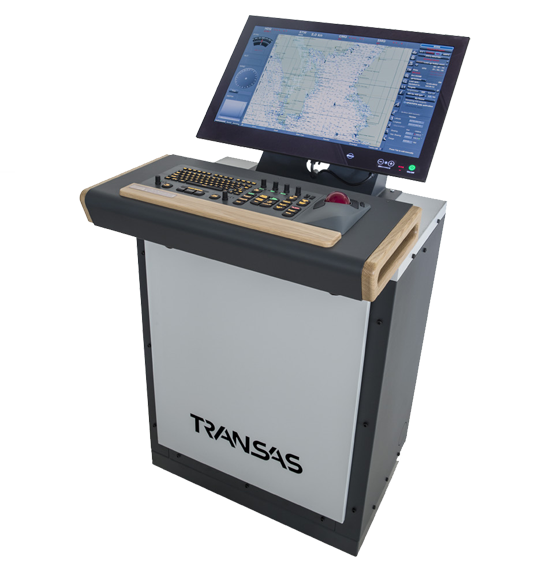

TRANSAS NS-4000 Ecdis

Navi-Sailor 4000 ECDIS is a navigation information system that displays full positional information from navigation sensors on electronic navigational charts. The system is designed to assist the officer in charge of the navigational watch (OOW) in route planning and monitoring.

Functionality

Navi-Sailor 4000 ECDIS Standard+ brings the following functions:

Available in both Panel Computer solution, as well as separate with Computer and Display
Navi-Sailor 4000 ECDIS Software
Basic ECDIS Functions
User Configurations for display settings
Docking Mode
Reference points for mooring operations
Dual Chart Panel
Left Chart Panel (Conning)
Target Simulator
Ports database
Route Planning Functions;
Quick distance calculator
AIS, ARPA and Target Management
Additional Sensors (Echo Sounder, Wind Sensor, Water Temperature);
Navtex Interface

Overview
Spesifications
Documents

Standalone Navi-Sailor 4000 ECDIS

Navi-Sailor 4000 ECDIS is designed in full compliance with the latest IMO, IHO and IEC standards and resolutions. NS 4000 ECDIS is a navigation information system that displays information from navigation sensors on the electronic navigational chart. The system is designed to assist the mariner in route planning and monitoring. The combination of all data on a single display allows for a high level of situational awareness and onboard decision-making. Using a Standalone ECDIS requires a full paper chart collection in use as a backup arrangement to fulfill the carriage requirements.

Dual Navi-Sailor 4000 ECDIS

A dual ECDIS supplied in a Master + Backup configuration complies with the backup requirements for ECDIS and meets the chart carriage requirement. In the event of ECDIS Master Failure, the Backup system automatically takes over as Master system in accordance with the ECDIS backup arrangement requirements.

Navi-Sailor 4000 ECDIS 'Back of the Bridge' Planning Station

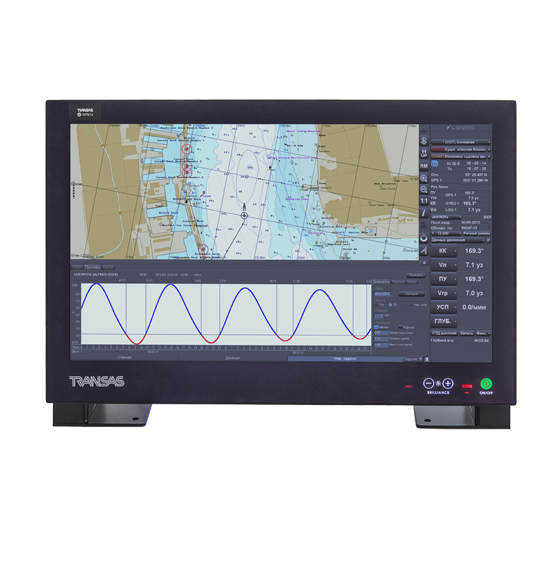

The NS 4000 ECDIS 'Back of the Bridge' planning station is based on the 24" Panel PC + Trackball. It includes Navi-Planner with full voyage plan functionality (Advanced Planning option) and ECDIS software. If mandatory sensors (GNSS, Gyro and Log) are connected to the unit, it can be used as a third ECDIS and Back-up. The 24" Panel PC 'Back of the Bridge' Planning Station can be used in combination with both NS 4000 ECDIS Standard and NS 4000 ECDIS Premium MFD.

Additional ECDIS sensors

IHO Standards related to ECDIS

As prescribed by MSC.1/Circ.1503 Transas do the maintenance for ECDIS software to comply the latest IHO standards, and are compliant to the latest ECDIS performance standard.

The following versions of Transas ECDIS systems are compliant with latest IHO standards:

Navi-Sailor 4000 ECDIS Standard+
Navi-Sailor 4000 ECDIS MFD Premium
Navi-Sailor 4100 WECDIS MFD

Implemented edition of the standards			Current Edition in force
NS 4000 ECDIS MFD Premium starting from v.2.00.330	NS 4000 ECDIS Standard starting form v. 2.00.323 (MNS32ed2)	NS 4000 ECDIS Standard Plus & MFD Premium starting from v. 3.00.340 (MNS 34)	IHO Standards
S-57 Edition 3.1.2	S-57 Edition 3.1.2	S-57 Edition 3.1.2	S-57 Edition 3.1.2(November 2000)
S-52 Edition 6.0	S-52 Edition 6.0	S-52 Edition 6.1	S-52 Edition 6.0 Valid up to 31-08-2017	S-52 Edition 6.1(.1) (October 2014 - With Clarifications up to June 2015)
S-52 PresLib Edition 3.4	S-52 PresLib Edition 3.4	S-52 PresLib Edition 4.0	S-52 PresLib Edition 3.4 (January 2008) Valid up to 31-08-2017	S-52 PresLib Edition 4.0 (October 2014 - With Clarifications up to June 2015)
S-63 Edition 1.1	S-63 Edition 1.1	S-63 Edition 1.2.0	S-63 Edition 1.2.0 (January 2015)
S-61 Edition 1.0	S-61 Edition 1.0	S-61 Edition 1.0	S-61 Edition 1.0
-	S-64 Edition 2.0.0	S-64 Edition 3.0.1	S-64 Edition 2.0 (May 2012) Valid up to 31-08-2017	S-64 Edition 3.0.1(June 2015)

If you find that your system is not compliant please contact your local Transas sales office or dealer to arrange the appropriate system upgrade.

Notes

*- These editions are the normative references for the type approval of ECDIS referring to the 4th edition of IEC61174 (2015). The previous editions remain valid for ECDIS type-approved with an earlier edition of IEC61174 until 31 August 2017.
