Power Supply
|
- AC:115-230 V 50/60 Hz
- DC: 20 - 32 V
|
| Power Consumption |
50 W at 24 V, 70 W at 230 V or 115 V
|

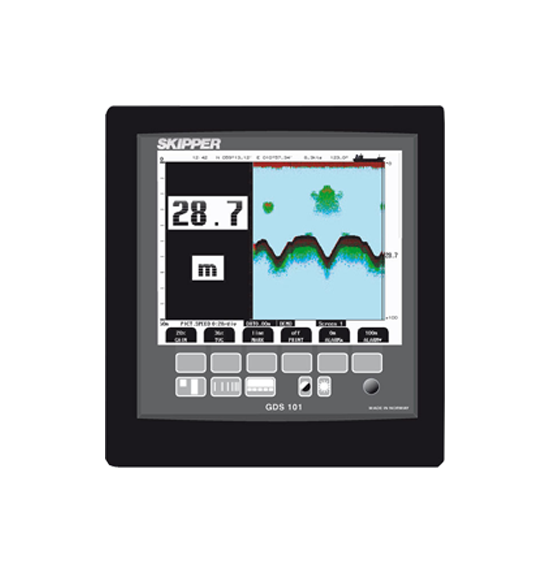

| Display |
Night/Day (10,4") Colour LCD screen with adjustable backlight
|
| Mounting Dimensions |
300 mm wide x 320 mm high |
| Printer |
External printer, contact SKIPPER |
| Memory |
More than 1 month depth recording depending on Compact Flash memory card |
| Ranges |
Selectable from 0 - 1600 m
|
| Measuring accuracy |
Error less than 1 %
|
Frequencies
|
38, 50 and 200 kHz selectable from keyboard (Other frequencies on request)
|
| Output power |
Up to 1kW, adjustable |
| Depth alarm |
Alarms for shallow and deep water |
| Calendar/clock |
Year-month-day/hours-min. 24 hour system |
| Data output |
- Trigger and bottom-pulses
- Alarm relays
- Analogue 4 - 20 mA, and 0 - 10 V for
depth
- Detected video
- NMEA 0183
- External VGA
- Printer
|
| Inputs |
- 100/200 pulses for speed
- NMEA 0183 for speed, position, heading
and time
|
| Languages |
English, French, German, Spanish,
Russian, Norwegian |
| Option |
- Remote depth indicators
- Remote keyboard
- Printer
|
| Classification |
Made to IMO performance standard |
| Service |
Available in most major harbours, world-wide through extensive dealer network |
