Walker 2080 Wind speed System

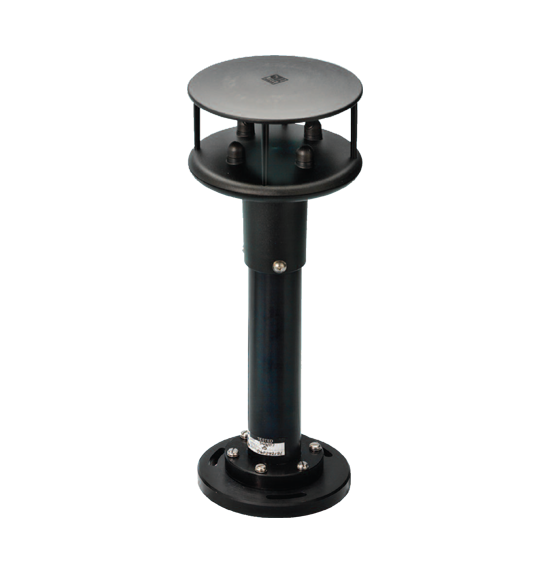

The Walker 2080 MK2 uses a Solid State Ultrasonic Wind Speed & Direction Sensor, the P292. This gives high accuracy in a robust compact package… with no moving parts to wear out!

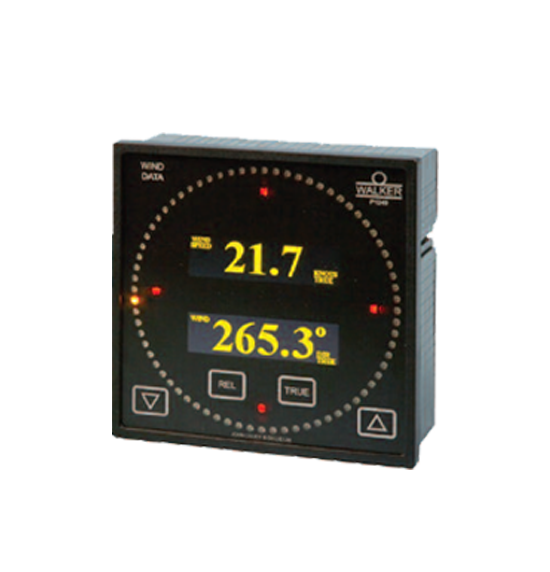

The Sensor connects directly to a standard Walker DIN 144 wind speed & direction indicator, the P1249, which gives digital displays of relative wind speed & direction. Wind direction is also displayed on a simulated analogue display by use of OLED technology.

True wind systems are available by using this sensor with the Walker P1066 True Wind Interface Unit.

Overview
Spesifications
Documents

Standard Configurations:

2080MKII - SCH810 Wind Speed & Direction System - Relative only

Comprising:

P292 Wind speed and direction sensor Ultrasonic
P293B 40mtr cable assy
P1249 Wind speed and direction indicator Din 144 x 144

2080MKIIT - SCH812 Wind Speed & Direction System - True & Relative

Comprising:

P292 Wind speed and direction sensor Ultrasonic
P293B 40mtr cable assy
P1066 Interface unit (True and relative wind)
P1249 Wind speed and direction indicator Din 144 x 144

Options

P1015 NMEA to Analogue Interface Unit
P1010 Power Supply Unit 220-100vac to 24vdc
P1812 Max Wind Auto Changeover Switch for Dual Sensor Systems
P1251 Universal Data Display Unit (UDDU)
P1274 Control for Remote Dimming for P1249
01-001-248 Bulkhead Mount for DIN144 x 144 Indicators
P1440 Desk Top Mount Bracket for Indicators
