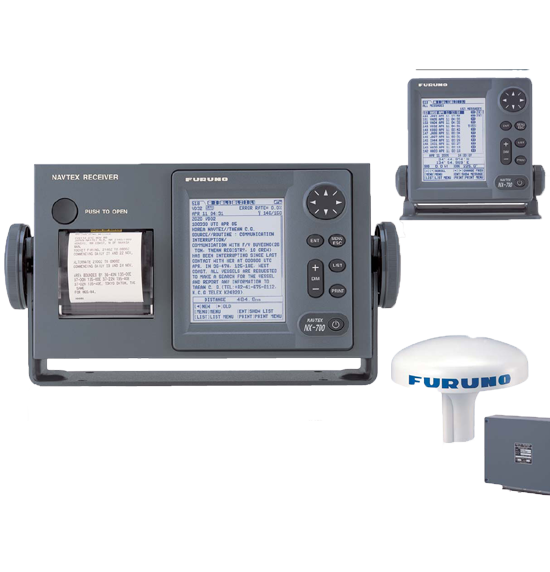

FURUNO NX-700A Navtex System

Enhances the navigation efficiency and safety by watching NAVTEX messages broadcasted on both international and local channels

The NX-700 can receive the international NAVTEX messages as well as domestic or local NAVTEX messages at the same time.

FURUNO NX-700 is a dual-channel NAVTEX receiver for SOLAS ships complying with the new NAVTEX performance standard MSC.148(77) which is implemented on and after 1 July 2005.

The NX-700 can receives two channels simultaneously. One is set for 518 kHz to receive international NAVTEX messages and another is selectable from 490 or 4209.5 kHz for domestic or local NAVTEX messages. These messages include a variety of safety information such as Navigational Warnings, Meteorological Warnings, Search and Rescue (SAR) information and other information for ships sailing within the reach of each service station’s coverage. The broadcast station can be selected automatically according to own ship position when the NX-700 is connected with a GPS navigator.

Every incoming message is stored in non-volatile memory and is displayed on a clear 5" silver bright LCD. Three different font sizes are available and can be selected from the menu.

The NX-700 has a low profile, stylish display, receiver and antenna units. An external Serial (RS-232) printer can easily be connected for message printing. Another model, the NX700P, is also available which incorporates a built-in printer. The compact, umbrella-type H-field antenna requires no grounding. In addition, the antenna incorporates a high-performance preamp within the compact body, which gives reliable and uninterrupted reception without an extra whip antenna.

Overview
Spesifications
Documents

Fully meets new IMO resolution MSC.148 (77) to be implemented on and after 1 July 2005 requiring
Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously
Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)
200 message of average length 500 characters can be stored in nonvolatile memory
Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception
Display messages on a clear 5" silver bright LCD
Low power consumption
NAV data display acts as NMEA repeater for GPS or instruments

Equipment List

Standard

DISPLAY UNIT
NX-700A
RECEIVER UNIT
NX-7001
ANTENNA UNIT
NX-7H
STANDARD INSTALLATION MATERIALS
STANDARD ACCESSORIES
STANDARD SPARE PARTS

Option

MAST MOUNTING KITCP20-01111
CABLE ASSEMBLYDSUB25P-DSUB25P-3M / DSUB25P-DSUB25P-5M / DSUB25P-DSUB25P-10M / DSUB25P-DSUB25P-15M
L-ANGLE MOUNTING BASENO. 13-QA310
RIGHT ANGLE MOUNTING BASENO. 13-QA330 (300)
HANDRAIL MOUNTING BASENO. 13-RC5160
ANTENNA CABLE EXTENSION KIT (10/20/30/40/50 M)OP04-2 10/20/30/40/50 M
FLUSH MOUNT KITOP08-19
AC/DC POWER SUPPLY UNIT (110/220 VAC -> 24 VDC)PR-240
ARMOURED COAXIAL CABLE (30/40/50 M)RG-10/U-Y 30/40/50 M
RECORDING PAPER (57MM X 30M)TP058-30CL
