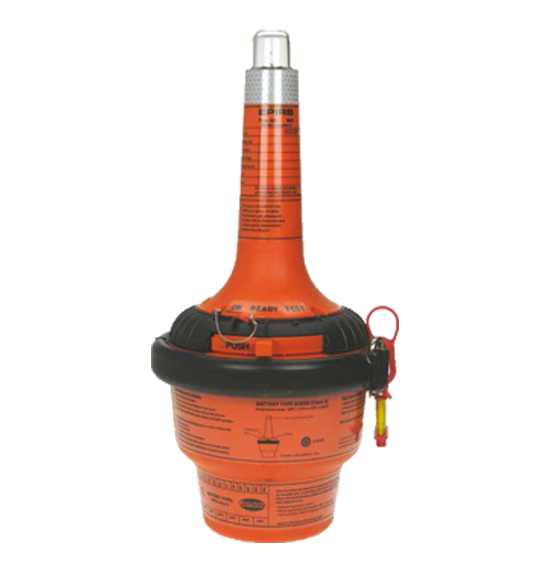

JOTRON Tron 40S MkII

The Tron 40S MkII is buoyant, and is designed to automatically release and activate in case of an emergency where the EPIRB and its bracket is submerged into the sea. The Tron 40S MkII can also be operated as a manual EPIRB, by manually releasing it from its bracket and then activating it.

Six different brackets are currently compatible with Tron 40S MkII. MB4 and MB5 are the manual bracket and FB4 and FBH4 is the automatic bracket. FB6/FB5 is automatic bracket with cover. The automatic bracket is mounted in a free space outside where the beacon can be released automatically.

The purpose of the Tron 40S MkII is to give a primary alarm to the search and rescue authorities. The EPIRB gives an immediate alarm when activated, transmitting the ID of the ship in distress. Care must be taken not to activate the EPIRB unless in an emergency situation, in such cases the user will be held responsible. For periodic testing a test function is implemented. During the test cycle the EPIRB does a self-test on the transmitters and on the battery status. No emergency signal is transmitted during the self-test. The battery of the EPIRB will last for at least 48 hours from activation of the EPIRB.

Overview
Spesifications
Documents

Article numbers:

83050   Tron 40S MkII Complete main unit
                 Includes: 82819 User manual

                Options:
99897   Programming (Country, Call Sign, MMSI)

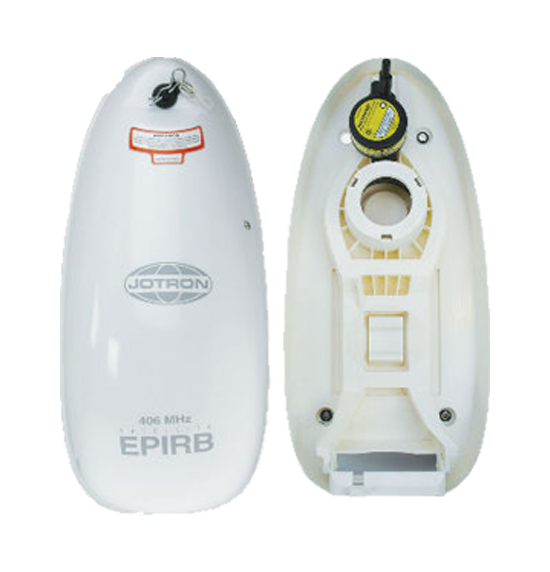

85216    FB-6 Float-free Bracket, automatic release, w/protective cover (pic)
                 Includes: 80414 Hydrostatic Release Unit (HRU) w/bolt for FB-5/FB-6
97777     FBH-4 Float-free Bracket, automatic release, with heating
                 Includes: 97821 Hydrostatic Release Unit (HRU) w/bolt for FB-4 and FBH-4
                   92410 Thermostat in junction box

                Spare parts:
83051    Tron 40S MkII, electronic unit
83056   Battery, Tron 40S MkII, 5 years maintenance kit
                 Includes:
                 Battery unit
                 91476 Rubber gasket
                 91478 U-bolt
                 83062 Label, operation
                 91477 Equator ring
                 91479 Safety pin
                 83063 Label, battery
80414   Hydrostatic Release Unit (HRU) w/bolt for FB-5/FB-6
                 Includes: Special bolt with washer & cotter pin
97821    Hydrostatic Release Unit (HRU) w/bolt for FB-4 and FBH-4
                 Includes: 97745 Special bolt with washer

5 years warranty

New non-haz battery

Fits existing brackets

New state of the art technology, improved visibility

Incorporated into Jotron recycle program

Complies with IMO/SOLAS/GMDSS regulations. MED and FCC approved.
